Z-60/37 FE

Представяне

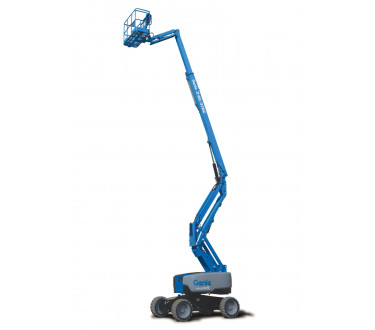

Two machines in one, the Genie^® Z^®-60/37 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.

Overview

Full-time active oscillating axle helps maintain traction on rough terrain
4WD and 45% gradeability for superior terrainability
High-efficiency AC drive system for enhanced driving performance and simplified maintenance
Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Функции

Maximum noise level for operator (in platform or cabin) - 74
Vertical jib rotation - 135
Platform rotation (°) - 160
Boom rotation (°) - 355
Tyre type - Rough terrain foam-filled
Wheelbase - 2.49
Drive speed - Lowered (km/h) - 6.44
Maximum wind speed when used outside (km/h) - 6.44
Up and over height (m) - 7.39
Working Height (m) - 20.16
Working Outreach (m) - 11.15
Total Weight (kg) - 7756
Payload (kg) - 227
Jib (m) - 1.52
Gradeability - 45%
Ground clearance (m) - 0.33
Tires (white / black) - Black
Traction type (4x2 / 4x4 / tracks) - 4x4
Propulsion (AC / DC / D / G / Bi-E - BI_ENERGY_D_B
Dimensions (Lxlxh) - 8.15 x 2.49 x 2.54
Transport dimensions (LxWxH) - 6.30 x 2.49 x 2.62
Platform dimensions (LxW) - 1.83 x 0.76
Platform height (m) - 18.16

Приложения

Строителство, монтаж на конструкции и промишлена поддръжка
Електричество и водопровод

Документация

Технически характеристики: 1065_Z60 37 FE.pdf

Manual Operare: 1065_1270491RO.pdf
