450AJ

Представяне

JLG Industries, Inc. is the world’s leading designer, manufacturer and marketer of access equipment. The Company’s diverse product portfolio includes leading brands such as JLG® aerial work platforms; JLG, SkyTrak® and Lull® telehandlers; and an array of complementary accessories that increase the versatility and efficiency of these products. JLG is an Oshkosh Corporation Company.

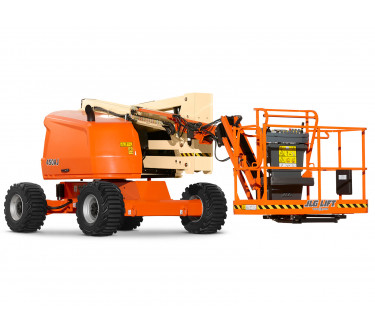

We bring you the NEW 450AJ - Articulating Boom Lifts - Ideal for industrial maintenance and the construction sector.

Функции

Gradeability - 45
Maximum wind speed when used outside (km/h) - 12.5
Maximum noise level for operator (in platform or cabin) - 102
Drive speed - Lowered (km/h) - 7.2
Tyre type - Foam Filled
Ground clearance at center of wheelbase - 0.29
Wheelbase - 2.34
Load capacity - 230
Transport width (m) - 2.34
Transport length (m) - 6.71
Transport height (m) - 2.29
Drive traction type - 4 wheel drive
Fuel tank capacity - 64
Engine manufacturer - Deutz
Engine model - D2011L03
Engine R.P.M. - 2800
Engine power (kW) - 49.49
Power Type - DIESEL
Platform Height - 13.72
Platform (Lxl) - 1.83x0.76
Boom rotation (°) - 360
Vertical jib rotation - 145
Platform rotation (°) - 170
Up and over height (m) - 7.67
Working Outreach (m) - 7.47
Височина на повдигане (m) - 13.72
Travel (Lxlxh) - 6.53x2.08x2.25
Jib - 1.24 m
Payload (kg) - 230
Working Height (m) - 15.72
Platform height (m) - 13.72
Platform dimensions (LxW) - 1.83x0.76
Transport dimensions (LxWxH) - 6.53x1.98x2.3
Dimensions (Lxlxh) - 6.53x1.98x2.3
Total Weight (kg) - 7400
Propulsion (AC / DC / D / G / Bi-E - DIESEL
Traction type (4x2 / 4x4 / tracks) - 4x4
Tires (white / black) - negre
Ground clearance (m) - 36 cm
Gradeability - 45%

Key Specs:
Working Outreach: 8.27 m / 27.1 ft
Working Height: 15.77 m / 51.7 ft
Platform Capacity - Unrestricted: 249.50 kg / 550.1 lb

Key Features:
Variable speed engine control for improved fuel efficiency reducing operating costs.
50%* faster full elevation time (*actuals might vary) increasing workers efficiency.
Half a meter more horizontal reach for an increased work envelope.
250 kg in basket vs 230 kg before allowing you to carry more tools or materials to stay on a job longer.

Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 60.50 L / 16 gal.
Engine Type - Diesel (HRC) Deutz D2.9 L4 Tier 4 Final 49 hp 36.4 kW
Engine Type - Diesel (LRC) Deutz D2.3L3 T4i 49 hp 36.4 kW
Engine Type - Dual Fuel GM Vortec 3000 MPFI 82 hp 61 kW

Performance Data
Axle Oscillation 0.1 m / 4 in.
Drive Speed - 4WD 6.80 km/h / 4.2 mph
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 249.50 kg / 550.1 lb
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 4.78 m / 15.7 ft
Jib - Range of articulation 144 Degrees

Dimensional Data
Ground Clearance 0.42 m / 1 ft 5 in.
Machine Height 2.27 m / 7.4 ft
Machine Length 6.58 m / 21.6 ft
Transport Length 6.58 m / 21.6 ft
Machine Width 2.34 m / 7.7 ft
Platform Dimension A 0.76 m / 2.5 ft
Platform Dimension B 1.83 m / 6 ft
Platform Height 13.72 m / 45 ft
Tailswing Zero
Tire Size (ANSI EXPORT & CSA) 33/1550 x 16.5 Superwide
Tyre Size 33/1550 x 16.5 Superwide
Tyre size 33/1550 x 16.5 Superwide

Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 7.62 m / 25 ft
Platform Height 13.72 m / 45 ft
Up and Over Height 7.30 m / 24 ft
Working Height 15.77 m / 51.7 ft
Working Outreach 8.27 m / 27.1 ft

General Specifications
Capacity - Hydraulic Reservoir 144 L / 38 gal.
Maximum Ground Bearing Pressue 4 Kg/cm2
Machine Weight 6495 kg / 14319 lb
Machine Weight (CE & GOST) 6495 kg / 14319 lb

Приложения

Строителство, монтаж на конструкции и промишлена поддръжка

Документация

Технически характеристики: 999_450AJ_EN pdf.pdf

Manual Operare: 999_Operation_3123836_09-30-2017_Global_Romanian_.pdf
